TOSHIBA WILLPOS B20

SLIDE-OUT SERVICEABILITY

The innovative WILLPOS B20, with its quick and effortless ‘slide-out' servicing, is the smart choice for today's eco-friendly retailers.


Features

EFFORTLESS MAINTENANCE

With front and back tool-less ‘slide-out' components and fewer internal cables, servicing the WILLPOS B20 is quick and effortless, taking downtime to an absolute minimum and further reducing the total cost of ownership. It is also uniquely possible to remove the hard disk, motherboard and power supply without first detaching any peripherals.
Toshiba benchmark tests confirm that WILLPOS B20 servicing times are considerably quicker than its predecessor or its competitors. For example, to reach the main board, another modular POS requires 24 actions, yet the WILLPOS B20 needs just 4, and the total time taken to replace the main board in the WILLPOS B20 is at least 3 times faster than that of its two main competitors.

LESS ENERGY,MORE POWER

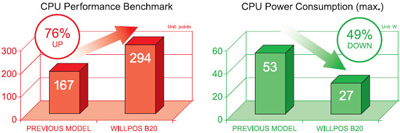

The innovative low-energy processor gives top-level POS performance whilst reducing running costs and CO2 emissions. Tests show the WILLPOS B20 to use 49% less energy than its predecessor, the ST-7000, yet is an incredible 76% more powerful.

EASY DIAGNOSTICS

If the WILLPOS B20 detects the irregular conditions, the systems immediately notify the error conditions by 7 segments display on the front panel.

Specifications


WILLPOS B20
CPU Intel Celeron M440 (1.86GHz), Intel Core2 Duo T7400 (2.16GHz)
Chipset 945GME
Memory 512MB DDR2 SODIMM (Max. 4GB)
HDD 2.5" HDD 250GB/ 160GB or over SATA I/F (Max. 2 Drives)
RAID RAID1 (Mirroring) Support
CD/DVD Drive Integrated (Option)
U-SSD I/F Yes
Floppy Disk Drive External drive USB I/F (option)
Display I/F VGA (Analog) (LVDS Digital : Option)
LAN 10 Base-T/100 Base-TX/1000 Base-T
Audio Line-out x 2 (Front & Rear), Mic-in x 1 (Rear)
Speaker Beep, Sound (Option)
PS/2 Keyboard x 1, Mouse x 1 (Rear)
RS232C 4 + 2 (Option)
Normal USB 3 (1: Front, 2: Rear)
Powered USB 12V x 5 (Rear), 24V x 1 (Rear)
Drawer Port 2 (Toshiba I/F)
Parallel 1 (Rear)
PCI Slot 2
Front LED Disk, Power, Diagnostics
AC Outlet 1
Cabinet Colour FW2 (Fair White2), CB (Cool Black)
Weight 8.8 kg / 19.4 lbs
8.9 kg / 19.62 lbs (Dual Disk Model)
Dimensions 315(W) x 466(D) x 112.5(H) mm (with cable cover)
12.4"(W) x 18.34"(D) x 4.42"(H) (with cable cover)
315(W) x 396(D) x 112.5(H) mm (without cable cover)
12.4"(W) x 15.59"(D) x 4.42"(H) (without cable cover)

Support OS:Windows7, Windows Vista, Windows XP, POSready2009, WEPOS, SUSE Linux Enterprise Desktop 10.0/11.0
Device Driver: OPOS, JavaPOS

  • Brochure (PDF FILE)
  • Driver download
