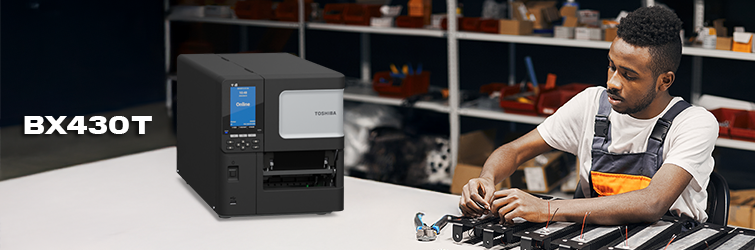

TOSHIBA BX430T Series

BX430t

TOSHIBA BX430T series is high resolution industrial printer and delivers 600 dpi printing with micro-labelling capabilities for ultra-precise applications.

  • Perfect for electronic component and PCB labelling, with label sizes as small as 13 x 3 mm.
  • New high-function fabric cutter with kicker supports care label production in the garment industry.
  • High-precision peel-off module for advanced and easy label handling.

Furthermore, the BX430T series is equipped with a new platform 'A-BRID' that realizes flexible expandability, providing various solutions to adapt to the ever-changing needs of the workplace.
Web Utility is enabled by A-BRID.

> Click here to learn more about Web Utility

BX430T
> Click here to learn more about iF DESIGN AWARD 2024 for BX400 Series

Specifications

  BX430T
Model HS02
CHARACTERISTICS
Printhead Flat edge
Print Method Thermal transfer / Direct thermal
Memory 1 GB RAM, 8 GB ROM
Dimensions (W x D x H) 278 mm x 460 mm x 310 mm (10.94" x 18.11" x 12.20")
Weight 17.0 kg (37.47 lb)
User Interface Color LCD(with LED backlight), 11Keys,
320 x 240 dots Graphic LCD
Operating Temp./Humidity 5°C to 40°C (41°F to 104°F)
25% to 85% RH (no condensation)
Power Supply AC100 to 240V, 50/60 Hz
PRINT
Resolution 600 dpi (24dot/mm)
Print Speed (max.) 152.8 mm/sec (6"/sec.)
Print Width (max.) 104 mm (4.09”)
Print Length (max.) 498 mm (19.6")
RIBBON
Width 40 mm to 115 mm(1.57" to 4.52")
Length 300 m(11811.02')
MEDIA
Alignment Centered
Media (backing paper) Width
(min. - max.)
25 mm to 110 mm (0.98" to 4.33")
Label Thickness 0.13 mm to 0.17 mm (0.005" to 0.006")
Inner Media Core Diameter 76.2 mm (3"), 50.8 mm (2"), 40.0 mm (1.57"), 38.0 mm (1.49")
Outer Media Roll Diameter (max.) Ø200 mm (Ø7.87"), Ø154 mm (Ø6.06")
Media format Roll, fanfold
SOFTWARE & CONNECTIVITY
Emulations Auto-detection of TPCL, ZPL II, DPL, SBPL, PDF
Printer Driver Windows 11/10, Windows Server 2022/2019, SAP, CUPS driver for Linux, macOS
SDK iOS, Android, Windows, Java
Interface USB 2.0 HS (USB host/HID support), LAN10/100/1000 BaseT, RS232C(1), WLAN802.11ac/a/b/g/n/ax(1)(2), Expansion I/O(1)
Language mode TPCL
Label software NiceLabel free, BarTender UltraLite
IoT device management e-BRIDGE CloudConnect
OPTIONS

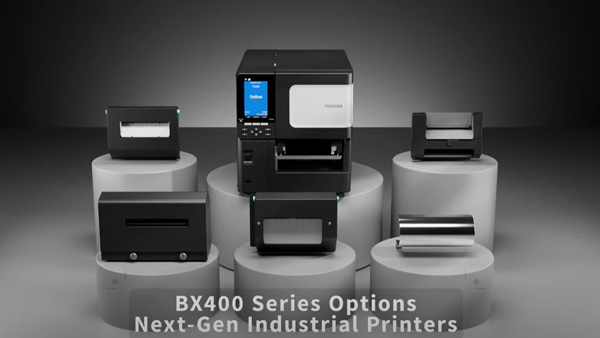

  Disc cutter, Cutter for Care label, Peel-off module, External media guide, RS232, Wireless communication module, EX I/O, Real time clock, High accuracy Peel-off module

*1: Optional
*2: Availability varies from country to country
